Full Automatic Paper Bag Machine

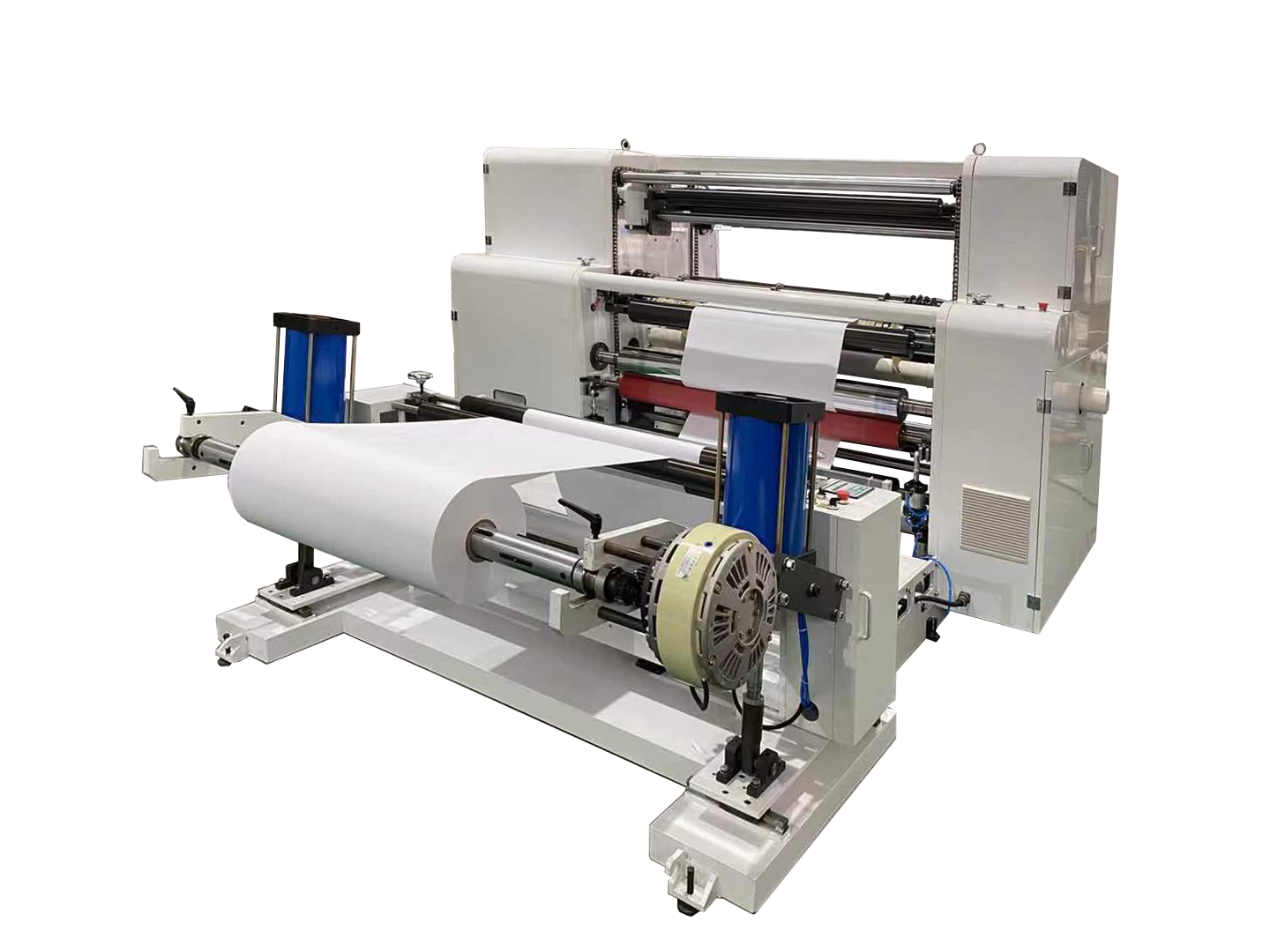

Paper Roll Slitting Machine

Quantity:
Availability:





Inquire Add to Cart

Product Description

Model	RKSL-1300	RKSL-1400	RKSL-1600	RKSL-1700	RKSL-1800
Max. original paper cutting width	1300mm	1400mm	1600mm	1700mm	1800mm
Max. original paper roll diameter	1500mm	1500mm	1500mm	1500mm	1500mm
Max. rewinding roller diameter	1000mm	1000mm	1000mm	1000mm	1000mm
Inner core diameter	76mm	76mm	76mm	76mm	76mm
Machine Max. speed	450m/min	450m/min	450m/min	450m/min	450m/min
Max. Slitting speed	400m/min	400m/min	400m/min	400m/min	400m/min
Tolerance of slitting width	≤±0.15mm	≤±0.15mm	≤±0.15mm	≤±0.15mm	≤±0.15mm
Min. Slitting Width	30mm	30mm	30mm	30mm	30mm
Power supply	AC 380V, 50HZ, three phase four wires	AC 380V, 50HZ, three phase four wires	AC 380V, 50HZ, three phase four wires	AC 380V, 50HZ, three phase four wires	AC 380V, 50HZ, three phase four wires
Rated power	30kw	33kw	40kw	50kw	55kw
Machine dimension	L3800XW2100XH1800mm	L3900XW2200XH1800mm	L3800XW2400XH1800mm	L3800XW2500XH1800mm	L3800XW2600XH1800mm
Machine weight	About 5000kg	About 5000kg	About 5200kg	About 5500kg	About 5500kg

paper roll slitting machine
