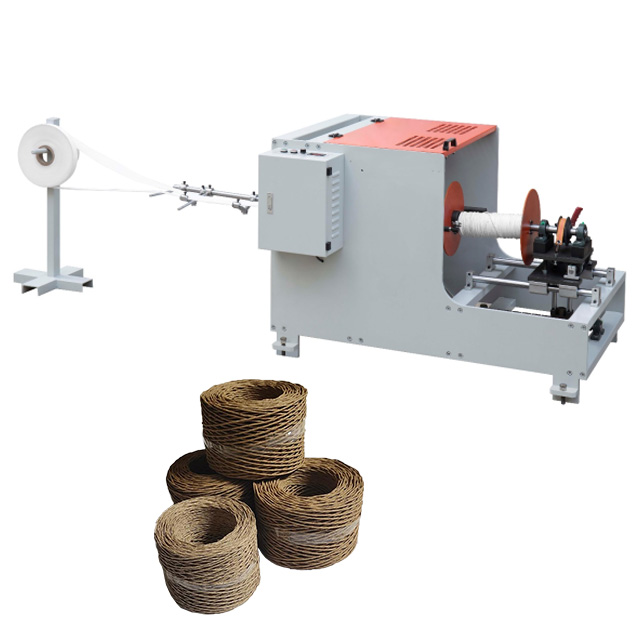

Twisted Rope Making Machine

Quantity:
Availability:





Inquire Add to Cart

Product Description

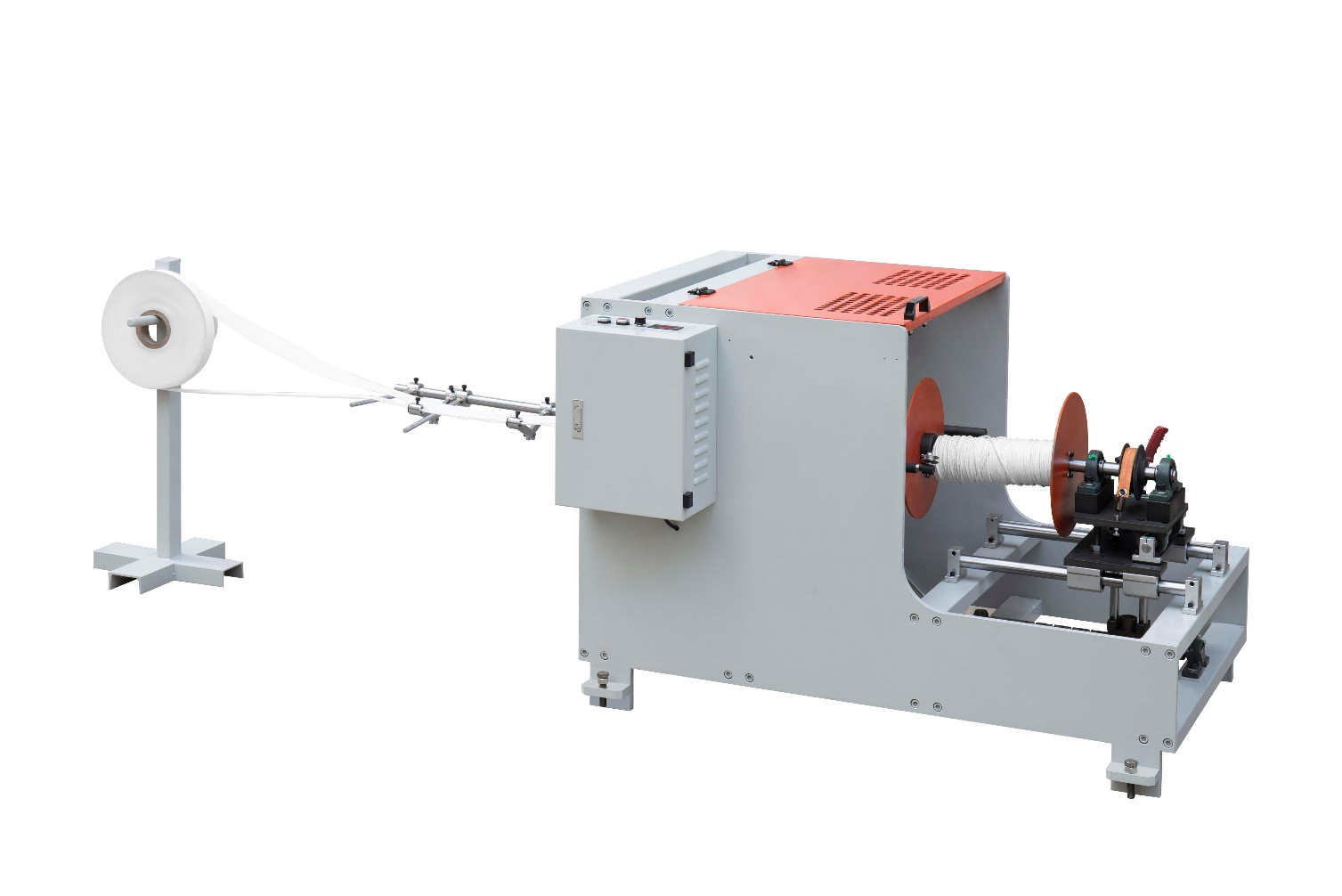

Model	RKH-R1
Core Diameter of Raw Paper Roll	Φ76 mm(3'')
Max. Diameter of Raw Paper Roll	400mm
Paper Roll Width	20-100mm
Paper Thickness	20-60g/m2
Finished Paper Rope Diameter	Φ2.5-6mm
Max. Diameter of Finished Rope Roll	300mm
Max. Height of Finished Rope Roll	300mm
Production Speed	15-20m/min
Machine supply	220V
Power	1.1KW
Weight	350KG
Dimension	L1580W1150H930mm

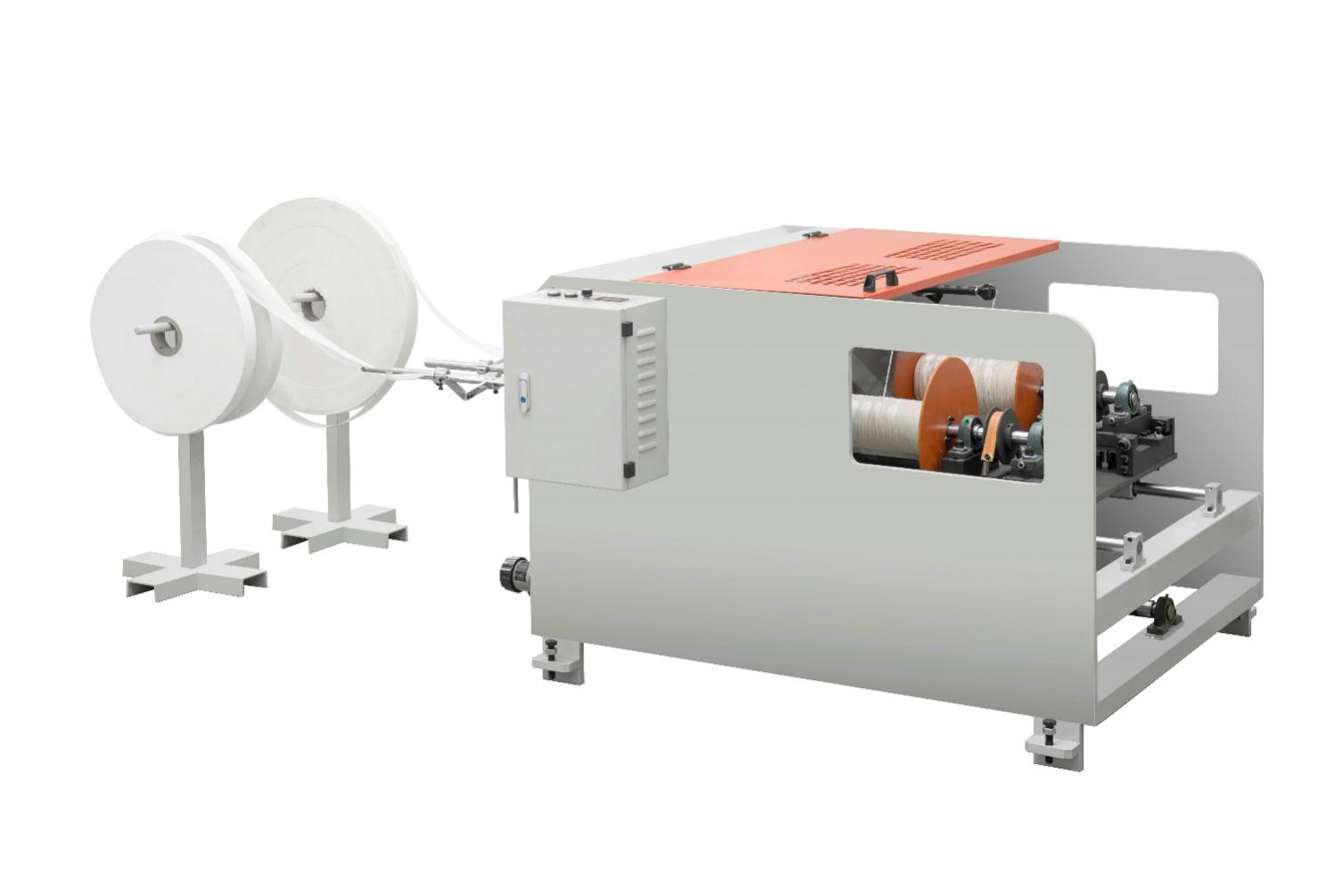

Model	RKH-R2
Core Diameter of Raw Paper Roll	Φ76 mm(3'')
Max. Diameter of Raw Paper Roll	450mm
Paper Roll Width	20-100mm
Paper Thickness	20-60g/㎡
Finished Paper Rope Diameter	Φ2.5-6mm
Max. Diameter of Finished Rope Roll	300mm
Max. Height of Finished Rope Roll	300mm
Production Speed	25-40m/min
Machine supply	220V
Power	1.5KW
Weight	700KG
Dimension	L1580W1440H930mm
